Adding a subwoofer to your car stereo enhances bass response and transforms your driving soundtrack. This guide walks you through choosing the right gear, wiring safely, and tuning for optimal sound. Whether you’re a beginner or DIY enthusiast, you’ll get professional-quality results.
How to Add Subwoofer to Car Stereo for Better Bass
If your car stereo sounds thin or lacks that punchy low end when your favorite bass-heavy track comes on, it’s time to upgrade. Adding a subwoofer to your car stereo system brings depth, clarity, and excitement to your music. Whether you love hip-hop, rock, EDM, or just want a fuller sound, a well-installed subwoofer makes a world of difference.
This step-by-step guide will show you exactly how to add a subwoofer to your car stereo—no professional experience required. We’ll cover everything from choosing the right components to wiring, installing, and tuning your system for the best possible sound. By the end, you’ll enjoy rich, powerful bass that enhances every drive.
Step 1: Choose the Right Subwoofer

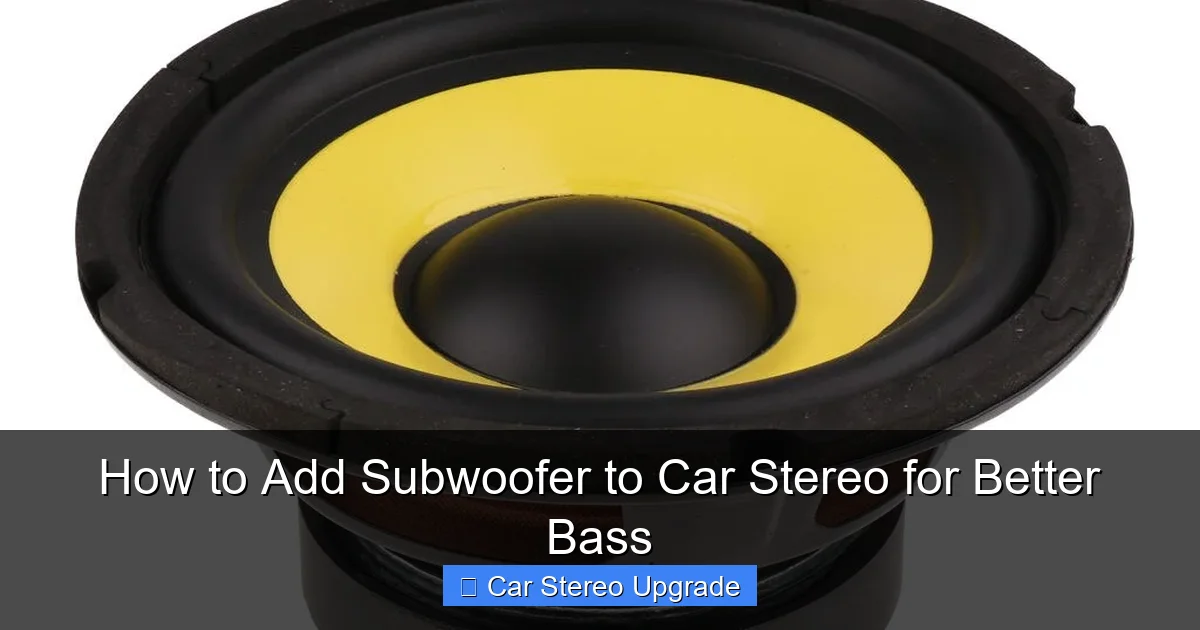

Visual guide about How to Add Subwoofer to Car Stereo for Better Bass
Image source: images.nexusapp.co
The first step in adding a subwoofer is picking the right one for your needs. Subwoofers come in different sizes, types, and power ratings—so it’s important to match them to your music preferences and vehicle space.
Consider Subwoofer Size
Common sizes include 8-inch, 10-inch, 12-inch, and 15-inch. Smaller subs (8″–10″) are great for tight spaces and tighter, more accurate bass. Larger subs (12″–15″) move more air and produce deeper, louder bass—ideal for hip-hop or electronic music.
Choose the Enclosure Type
Subwoofers need an enclosure to perform properly. The three main types are:
- Sealed boxes: Compact and deliver tight, accurate bass. Best for rock, jazz, and audiophiles.
- Ported boxes: Louder and deeper bass due to tuned ports. Great for bass-heavy genres.
- Bandpass boxes: Enclosed with a ported chamber. Very loud but less accurate—best for SPL competitions.
Match Impedance and Power
Check the sub’s RMS power rating (not peak) and impedance (usually 2 or 4 ohms). This helps you choose a compatible amplifier. Never underpower a sub—it can cause distortion and damage.
Step 2: Select a Compatible Amplifier
A subwoofer needs its own amplifier to perform well. Your car stereo’s built-in amp isn’t powerful enough for serious bass.
Match Power Output
Choose an amp that delivers power close to your sub’s RMS rating. For example, if your sub is rated at 300 watts RMS, pick an amp that outputs 250–350 watts RMS at the sub’s impedance.
Look for Key Features
Good sub amps include:
- Low-pass crossover (to send only bass frequencies to the sub)
- Bass boost (use sparingly)
- Remote bass level control (lets you adjust from the driver’s seat)
- Protection circuits (against overheating, short circuits, etc.)
Mono vs. Multi-Channel
Most subwoofers use mono (single-channel) amplifiers. These are efficient and designed specifically for low-frequency output.
Step 3: Gather Tools and Materials
Before you start, make sure you have everything you need. Here’s a checklist:
- Subwoofer and enclosure
- Mono amplifier
- Amplifier wiring kit (includes power wire, ground wire, RCA cables, remote turn-on wire, fuse holder, and fuse)
- Screwdrivers, wire strippers, crimping tool
- Electrical tape and zip ties
- Sound-deadening material (like Dynamat or Noico)
- Drill and drill bits (if mounting the amp or running wires through metal)
Step 4: Install the Subwoofer Enclosure
Now it’s time to place your subwoofer in the car. Most people install it in the trunk, but some SUVs or hatchbacks allow rear seat placement.
Choose the Best Location
Pick a spot that’s secure and doesn’t interfere with cargo space. The trunk is ideal because it’s enclosed and helps amplify bass.
Secure the Enclosure
Use screws or heavy-duty straps to anchor the box. Loose enclosures can shift while driving and cause damage or noise.
Add Sound Deadening
Line the trunk walls and floor with sound-deadening mats. This reduces rattles and improves bass clarity by minimizing panel vibrations.
Step 5: Run Power and Signal Wires
This is the most technical part—but don’t worry, it’s straightforward with the right steps.
Disconnect the Battery
Always disconnect the negative terminal of your car battery before working with electrical systems. This prevents accidental shorts or shocks.
Run the Power Wire
Route the power cable from the battery to the amplifier:
- Use the firewall grommet to pass the wire into the cabin.
- Run it along the same side as the factory wiring (usually the driver’s side).
- Keep it away from moving parts, heat sources, and sharp edges.
Install the Fuse
Mount the fuse holder within 18 inches of the battery. This protects your car from fire if a short occurs.
Ground the Amplifier
Connect the ground wire to a solid metal point on the car’s chassis. Sand the paint off the contact area for a clean connection. Use a bolt that’s tight and secure—don’t ground to plastic or painted surfaces.
Connect RCA and Remote Wire
Run RCA cables from your head unit to the amp. Use the remote turn-on wire (usually blue) to tell the amp when to power on. Connect it to the head unit’s remote output or a switched 12V source.
Step 6: Connect the Subwoofer to the Amplifier
Now wire the subwoofer to the amplifier.
Match Impedance
If you have a dual voice coil (DVC) sub, wire the coils in series or parallel to match the amp’s stable impedance (usually 2 or 4 ohms). Check your amp’s manual for compatibility.
Use Proper Gauge Wire
Use speaker wire rated for your power level. For most setups, 12- or 14-gauge wire is sufficient.
Secure Connections
Use crimp connectors or soldering for reliable connections. Avoid loose or frayed wires.
Step 7: Tune the System
Tuning is what makes your subwoofer sound great—not just loud, but clean and balanced.
Set the Gain
Turn the gain knob all the way down. Play a familiar track at 75% volume. Slowly increase the gain until the sound starts to distort—then back it off slightly. This ensures clean power without clipping.
Adjust the Low-Pass Crossover
Set the crossover between 80Hz and 100Hz. This sends only low frequencies to the sub and prevents muddiness.
Check Phase Setting
Most amps have a 0°/180° phase switch. Play bass-heavy music and flip the switch. Choose the setting where the bass sounds fuller and more integrated with your main speakers.
Use the Bass Boost Sparingly
Bass boost can enhance low end, but too much causes distortion. Use it only if needed—and keep it under 3dB.
Troubleshooting Common Issues
Even with careful installation, you might run into problems. Here’s how to fix them:
No Sound from Subwoofer
- Check all connections—power, ground, remote, RCA.
- Ensure the amp is powered on (LED should be lit).
- Test the fuse and replace if blown.
Distorted or Clipping Bass
- Lower the gain on the amp.
- Reduce bass boost or EQ settings on the head unit.
- Make sure the sub isn’t underpowered or overdriven.
Rattling or Vibrating Noises
- Tighten the subwoofer mounting screws.
- Add more sound deadening to trunk panels.
- Ensure the enclosure is sealed properly.
Amplifier Overheating
- Check for proper ventilation around the amp.
- Ensure the impedance load is within the amp’s range.
- Reduce volume or bass boost if the amp is working too hard.
Conclusion
Adding a subwoofer to your car stereo is one of the most rewarding upgrades you can make. It transforms your listening experience with deep, powerful bass that makes every song come alive. By choosing the right subwoofer and amplifier, installing them safely, and tuning the system correctly, you’ll enjoy high-quality sound for years to come.
Remember: take your time, follow the steps carefully, and prioritize safety. With a little effort, you’ll have a car audio system that rivals professional setups—and turns every drive into a concert on wheels.
