Swapping rims on your small trailer should be a quick yes-or-no decision, not a crash course in tire codes. The real question is always the same: which load rating and diameter keep your boat, camper, or utility trailer tracking straight at highway speeds without blowing your budget? This guide cuts through the size numbers to the three specs that actually matter — load capacity, inflation pressure, and bolt pattern — so you match the exact 4 lug rim your trailer needs.
I’m Min Islam — the founder and writer behind Trending Car. This guide is built by comparing the manufacturers’ published specifications and the patterns across verified customer reviews, so you get each pick’s real strengths and trade-offs instead of marketing spin.
Whether you are swapping out worn steelies on a landscape trailer or upgrading a pop-up camper, these are the best 4 lug rims for keeping your load secure and your ride smooth.
Our Picks at a Glance
How To Choose The Best 4 Lug Rims
Picking the right 4 lug trailer rim is mostly about matching three numbers: the tire size, the load capacity, and the bolt pattern. Get those right and the rim bolts on without guesswork.
Bolt Pattern and Center Bore
The bolt pattern is the distance between opposite lug holes. Every rim here uses a 4 lug on 4 inch pattern — that is four holes evenly spaced on a 4 inch diameter circle. The center bore (the big hole in the middle of the rim) needs to clear your trailer’s hub. Most of these rims have a 2.83 inch center bore, so a standard small-trailer hub fits without binding.
Load Range and Ply Rating
The load range tells you the maximum weight each rim and tire assembly can carry at full inflation pressure. Load Range C (6PR) is the most common for 4 lug trailer rims — it handles roughly 760 to 1050 lbs per tire depending on the size. You want the load rating of the pair to exceed your trailer’s gross vehicle weight rating (GVWR) for a safety margin.
Rim Diameter and Tire Size
Rim diameter determines which tire size fits. The numbers like 4.80-12 mean the tire is about 4.8 inches wide and fits a 12 inch rim. A 5.30-12 is a bit wider and taller for heavier loads. An 8 inch rim (4.80-8 or 5.70-8) is common on smaller pop-up campers and light utility trailers — it’s more compact but carries less weight than the 12 inch options.
Quick Comparison
| Model | Best For | Load Capacity | Max PSI | Rim Size | Amazon |
|---|---|---|---|---|---|
| eCustomrim 4.80-12★ Best Overall | Mid-Size Trailers (Balanced) | 785 lbs | 60 PSI | 12 inch | Amazon |
| GarveeTech 5.30-12Top Performer | Heavy Utility & Boat Trailers | 1050 lbs | 80 PSI | 12 inch | Amazon |
| WANDA 5.70-8 | Pop-Up Campers & Light Hauling | — | — | 8 inch | Amazon |
| MERXENG 4.80-12 | Budget Upgrades (High PSI) | 990 lbs | 90 PSI | 12 inch | Amazon |
| eCustomrim 4.80-8 | Compact Pop-Up Trailers | 760 lbs | 60 PSI | 8 inch | Amazon |
In‑Depth Reviews
1. eCustomrim 2-Pack Trailer Tire Rim Assembly 4.80-12
Our pick — over 4.5★ from 900+ verified ratings; the strongest balance of quality and price.
The proven 785 lb mid-range rim that buyers trust for boat and utility trailer replacements.
With 929 ratings and a 4.7 average, this eCustomrim 2-pack is the most-reviewed 4 lug rim in the guide — and for good reason. Each 4.80-12 assembly carries 785 lbs at 60 PSI, which is a solid middle ground for most 12 inch trailers. At 20.5 inches overall diameter versus the GarveeTech 5.30-12’s 21.9 inches, the eCustomrim fits tighter trailer wells without rubbing.
The square shoulder tread design on this Load Range B tire gives you stable road contact, and buyers mention the radial-style tread noticeably cuts road noise compared to older bias ply tires. It includes a 2 year warranty with roadside assistance — something the GarveeTech above lacks. One reviewer called it “the best price around” and an exact replacement for their boat trailer.
Why Buyers Choose It
- 2 year manufacturer’s warranty with roadside assistance
- Variable tread pitch reduces road noise for a smoother tow
- Corrosion-resistant rim coating, mounted in the USA
The Limit
- 785 lb max load trails the 990 lb and 1050 lb options for heavy hauling
Best for balanced buyers: Perfect for a standard boat or utility trailer where 785 lbs per tire matches your GVWR and you want the peace of a 2 year warranty.
Skip for heavy loads: If you are hauling near 1000 lbs per tire, move up to the GarveeTech or MERXENG 4.80-12.

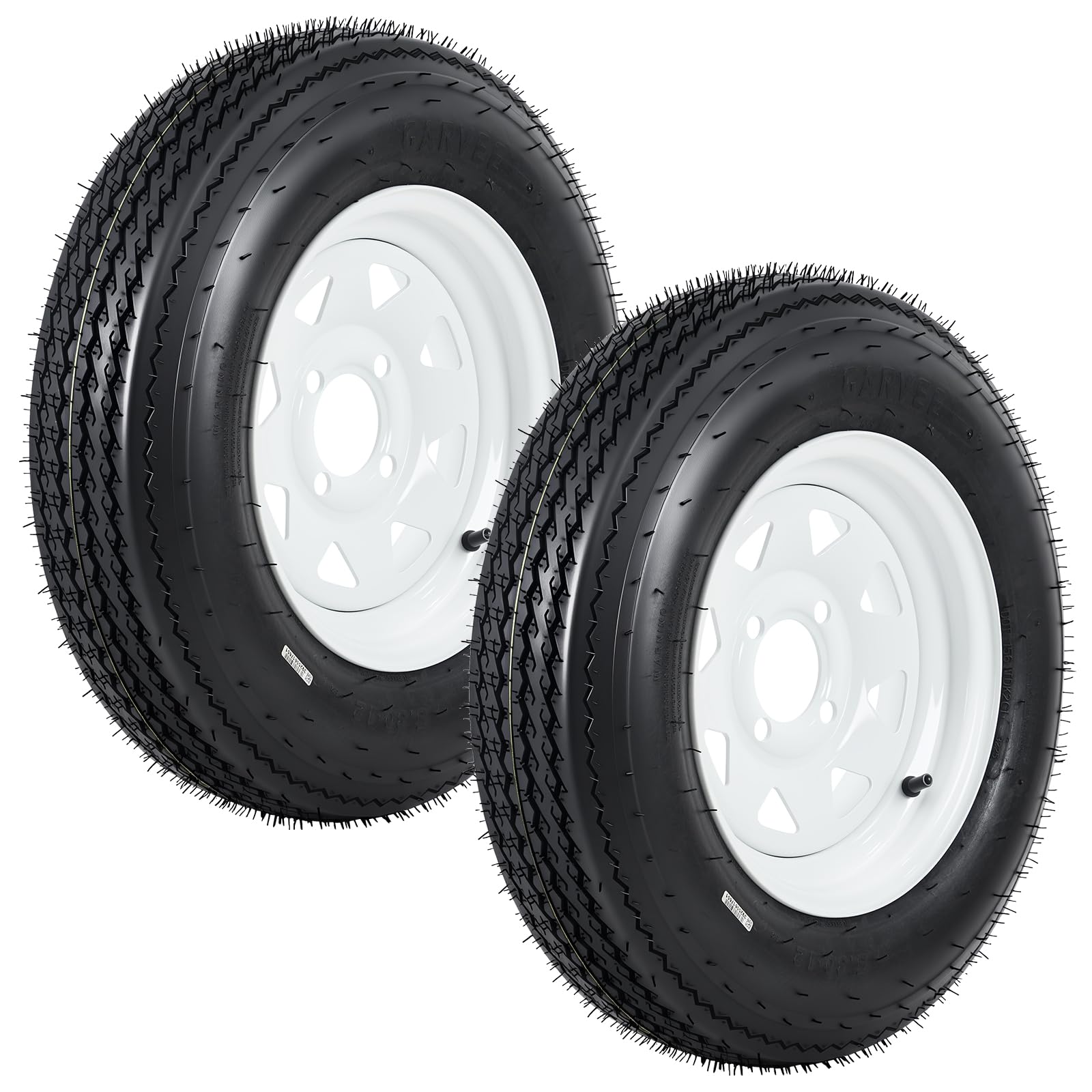

2. GarveeTech 5.30-12 530-12 Trailer Tire and Wheel Assembly
The heaviest hauler here with 1050 lbs capacity per tire for bigger boats and utility trailers.
If you regularly tow close to a ton, this is the 4 lug rim that keeps up. At 21.9 inches across, it is the largest diameter rim in this lineup, so it rolls over bumps with less jarring than the 8 inch options.
Buyers report the bias ply design and double steel belts give noticeable stability on rough terrain. Still, for a boat trailer or a farm hauler that sees real loads, this is the rim set that anchors your trailer properly.
Where It Leads
- Highest load rating in this guide at 1050 lbs per tire
- Max PSI of 80 means you can run firmer for heavy highway loads
- Durable nylon cord layers with double steel belts for stability
The Trade-Offs
- Heaviest assembly at 41.9 lbs — harder to lift and mount
- No manufacturer warranty included
The heavyweight pick: Grab this set if you are towing a loaded boat or utility trailer that needs a real 1050 lb safety margin.
Not for light trailers: This 5.30-12 tire is overkill and heavy for a small pop-up camper or a lightweight landscape hauler.

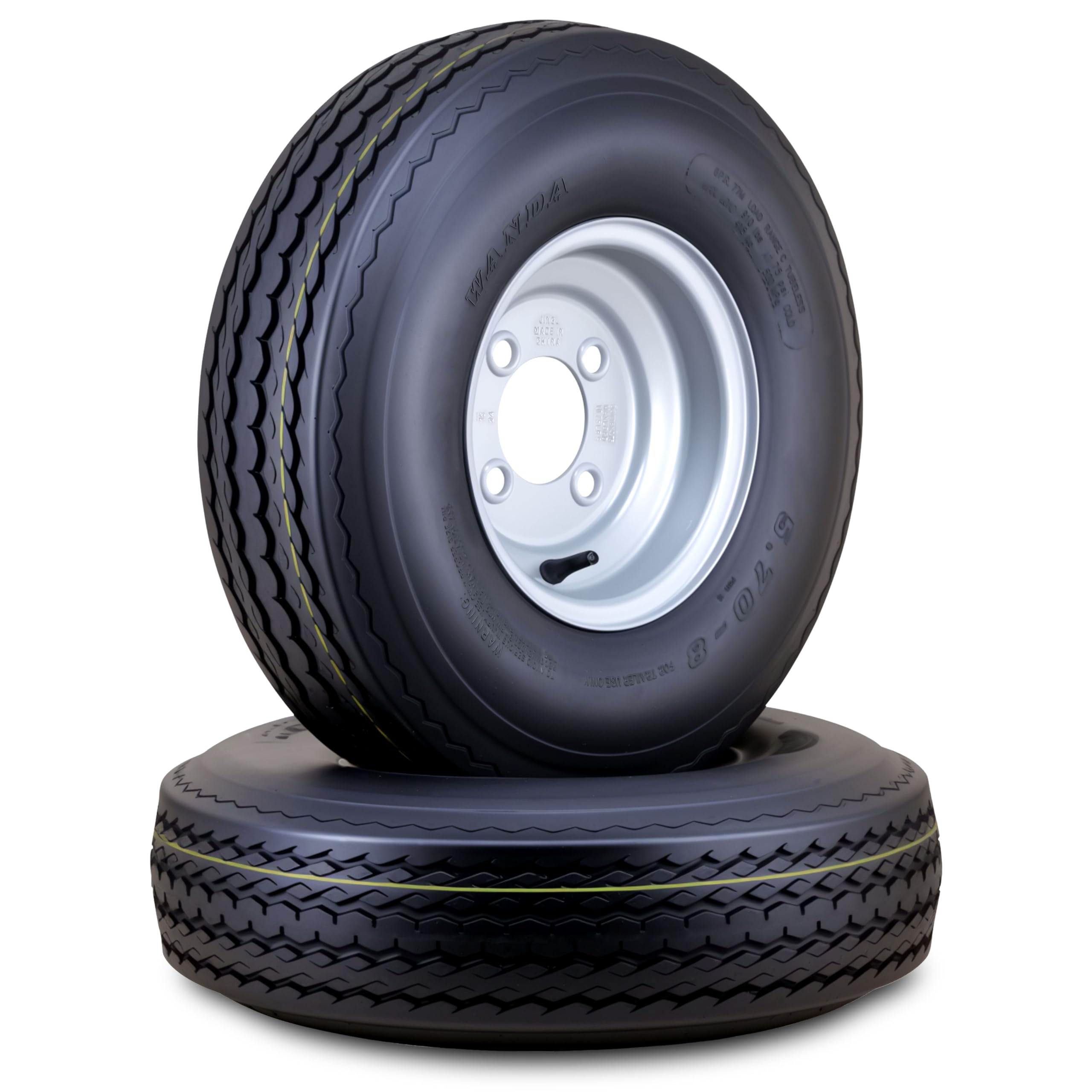

3. WANDA Trailer Tire Wheel Assembly 5.70-8
An 8 inch silver rim with 6-ply toughness that fits motorcycle trailers and pop-ups.
If your trailer runs on 8 inch rims (common on smaller pop-up campers and motorcycle haulers), this WANDA set is the most capable of the smaller-diameter options here. At 5.70-8, it is wider than the 4.80-8 eCustomrim below, and the 6-ply Load Range C construction handles highway speeds up to 75 mph without heat issues. One reviewer noted driving 2800 miles at 70-75 MPH on a motorcycle trailer with no heat or stress problems.
The silver painted finish is a visual step up from the white spoke wheels on the other picks, though a few buyers did note paint chipping during shipping on the outer edge. At 27.36 lbs versus the GarveeTech 12 inch’s 41.9 lbs, this assembly still carries a solid load index of 77.
Why It Stands Out
- Speed rated M (up to 75 mph) — highway-legal
- Silver painted finish looks cleaner than standard white wheels
- Proven for 2800 mile highway trips with no heat stress
Watch For
- Packaging may cause paint chipping on the rim edge — inspect on delivery
- 8 inch rim means lower ground clearance vs 12 inch options
Best for 8 inch trailers: Ideal if you have a pop-up camper or motorcycle trailer and want a 6-ply C-rated tire that is highway-ready.
Skip for larger loads: An 8 inch rim cannot match the capacity of 12 inch rims — stay with 12s for heavy utility trailers.
4. MERXENG 2 Pack 4.80-12 Trailer Tires with 12” Rims
This 12 inch rim carries 990 lbs and inflates to a class-leading 90 PSI for firm loads.
The 5mm tread depth is also slightly deeper than typical for this size, so you get more wear life on gravel or asphalt.
The 2.95 inch center bore is a touch larger than the 2.83 inch standard, so check your hub diameter before ordering. Buyers with boat trailers and utility trailers report easy installation and say the price beats local tire shops hands down. The 1 year warranty is shorter than the eCustomrim’s 2 years, but the higher PSI ceiling makes this the right choice if you run near-max loads frequently.
The Advantage
- Highest max pressure at 90 PSI — supports 990 lbs per tire
- 5mm tread depth for longer wear
- Lightweight at 26.5 lbs — easier to mount than the 36+ lb competitors
Consider
- 1 year warranty only — less coverage than eCustomrim
- Center bore at 2.95″ may not fit all trailer hubs
Reach for this if: You need a 12 inch rim that handles near 1000 lbs per tire at high inflation pressure for heavy hauling.
Look elsewhere if: Your trailer hub is exactly 2.83 inches — the larger 2.95 inch center bore could leave a small gap.
5. eCustomrim 2-Pack Trailer Tires On Rims 4.80-8
The lightest 4 lug set at 20 lbs — built for pop-up campers and small utility trailers.
At 8 inches in diameter and just 20 lbs per assembly, this is the most compact and maneuverable set on the list. The 4.80-8 tire carries 760 lbs at 60 PSI with a Load Range C rating, which is enough for small pop-up trailers, lightweight kayak trailers, and Cushman-style carts. The 2.83 inch center bore matches the standard small trailer hub.
One buyer verified the tires fit perfectly on their popup trailer and noted they “provide stability when moving or sitting stationary.” The 8X3.75 inch rim is narrower than the 12 inch options, so it fits trailers with tight fender clearance. The 2 year warranty with roadside assistance is the same solid coverage as eCustomrim’s 12 inch set.
Compact Advantages
- Lightest at 20 lbs — easy for one person to lift and mount
- 2 year warranty with roadside assistance
- 16.5 inch overall diameter fits tight trailer frames
Watch For
- Lower ground clearance with the 8 inch rim — not for rough terrain
- 760 lb max load is fine for pop-ups but too low for heavy utility trailers
Perfect for small campers: This set is ideal for pop-up trailers, small landscape carts, and lightweight DIY projects.
Not for heavy loads: If your trailer regularly carries more than 700 lbs per wheel, step up to a 12 inch rim for the extra capacity.
Understanding the Specs
Bolt Pattern (4 on 4 Inch)
The bolt pattern is the distance between lug holes. A 4 lug on 4 inch pattern means four holes sit on a 4 inch diameter circle. All the rims in this guide use that same pattern, so they swap directly onto any standard small trailer hub that matches. If your hub has a different spacing, these rims will not bolt up without adapters.
Load Range and Ply Rating
Load Range tells you the max weight rating at the tire’s highest PSI. Load Range C (6PR) is the ply rating that equates to 6 layers of rubber and fabric inside the tire sidewall. A higher ply count means more strength and a stiffer sidewall — good for stability under heavy loads, but the ride may feel firmer when the trailer is empty.
FAQ
Are 4 lug rims universal across all small trailers?
Can I put a 5.30-12 tire on a rim meant for a 4.80-12?
What does Load Range C mean for a 4 lug rim?
How do I tell if an 8 inch rim fits my trailer?
Will a 90 PSI rim work on a trailer hub rated for 60 PSI?
Do these rims come with the valve stem or do I need to buy one separately?
Can I use these 4 lug rims on a snowmobile trailer?
How tight should I torque the lug nuts on a 4 lug rim?
What is the difference between a white spoke rim and a silver painted rim?
Will these 4 lug rims fit a Harbor Freight trailer?
Final Thoughts: The Verdict
For most buyers, the best 4 lug rims winner is the GarveeTech 5.30-12 because its 1050 lb capacity and 80 PSI rating handle the heaviest loads with real stability. If you want a proven mid-range pick with a 2 year warranty, grab the eCustomrim 4.80-12. And for a compact pop-up camper or a lightweight trailer, the eCustomrim 4.80-8 is light, easy to mount, and gets great reviews.
